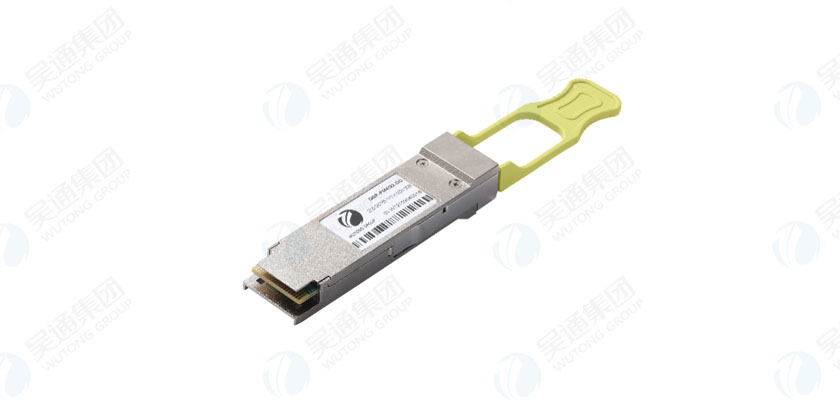

100G QSFP28 PAM4 Transceiver
Features:
· 1*100G PAM4 EML laser / PIN photo-detector
· Supports 103.1Gb/s aggregate bit rate
· Commercial case temperature range: 0~70℃
· Support I2C management interface and DDM
· Built-in DSP
· Power dissipation＜4W
· Single 3.3V power supply
· RoHS6 compliant and lead-free
Standards:
· IEEE 802.3bs
· IEEE 802.3cd
· 100G Lambda MSA
· QSFP MSA
· SFF-8636

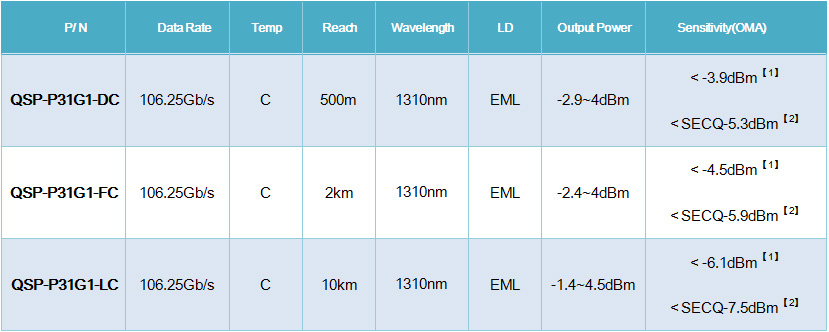

Specifications:
Case temperature range:
I: industrial grade; C: commercial grade
Remark:
【1】SECQ＜1.4dB；
【2】1.4dB＜SECQ＜3.4dB.
