LTE标准模组系列

BM816
TDD-LTE/FDD-LTE/WCDMA/EVDO/CDMA1x/EDGE/GPRS/GSM/GPS Cellular Module
Platform: Qualcomm MDM9607
Package: miniPCIE
PeakRate(DL/UL): 150Mbps/50Mbps
Operation temperature: -40℃ to +85℃
Dimension: 51.0 X 30.0 X 4.7mm

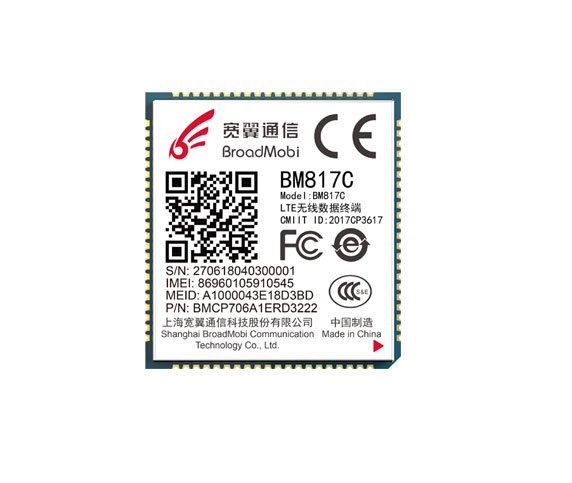

BM817C
TDD-LTE/FDD-LTE/WCDMA/EVDO/CDMA1x/EDGE/GPRS/GSM/GPS Cellular Module
Platform: Qualcomm MDM9607
Package: LCC
PeakRate(DL/UL): 150Mbps/50Mbps
Operation temperature: -40℃ to +85℃
Dimension: 32.5 X 30.0 X 2.5mm

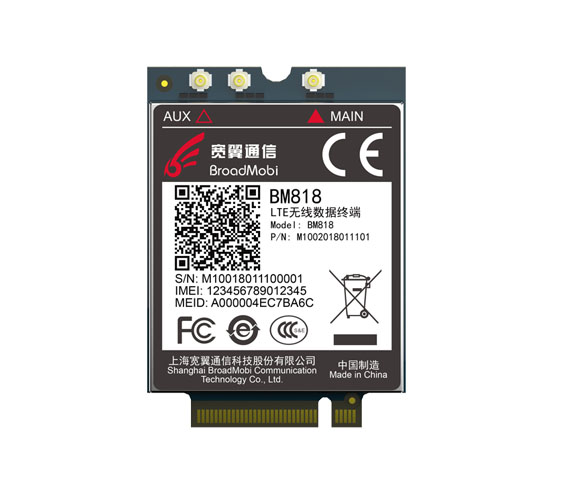

BM818
TDD-LTE/FDD-LTE/WCDMA/EVDO/CDMA1X/EDGE/GPRS/GSM/GPS Cellular Module
Platform: Qualcomm MDM9607
Package: M.2
PeakRate(DL/UL): 150Mbps/50Mbps
Operation temperature: -40℃ to +85℃
Dimension: 42.0 X 30.0 X 2.3mm

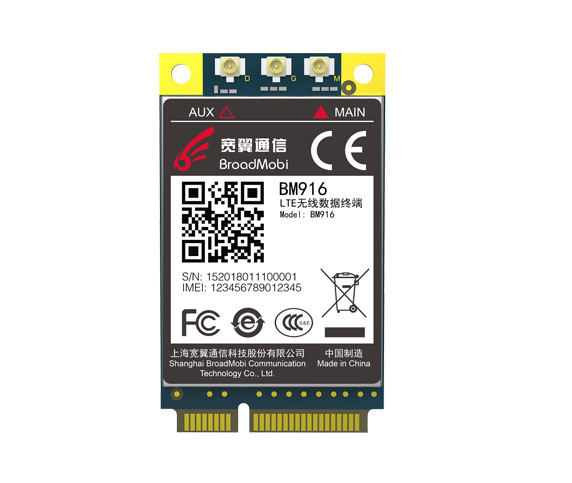

BM916
TDD-LTE/FDD-LTE/WCDMA/EVDO/CDMA1X/EDGE/GPRS/GSM/GPS Cellular Module
Platform: Qualcomm MDM9640
Package: miniPCIE
PeakRate(DL/UL): 600Mbps/75Mbps
Operation temperature: -40℃ to +85℃
Dimension: 51.0 X 30.0 X 4.7mm
BM916R
TDD-LTE/FDD-LTE/WCDMA/EVDO/CDMA1X/EDGE/GPRS/GSM/GPS Cellular Module
Platform: Qualcomm MDM9640
Package: miniPCIE
PeakRate(DL/UL): 300Mbps/75Mbps
Operation temperature: -40℃ to +85℃
Dimension: 51.0 X 30.0 X 4.7mm
